GS40001B IST Coupon Information (With capacitance holes)

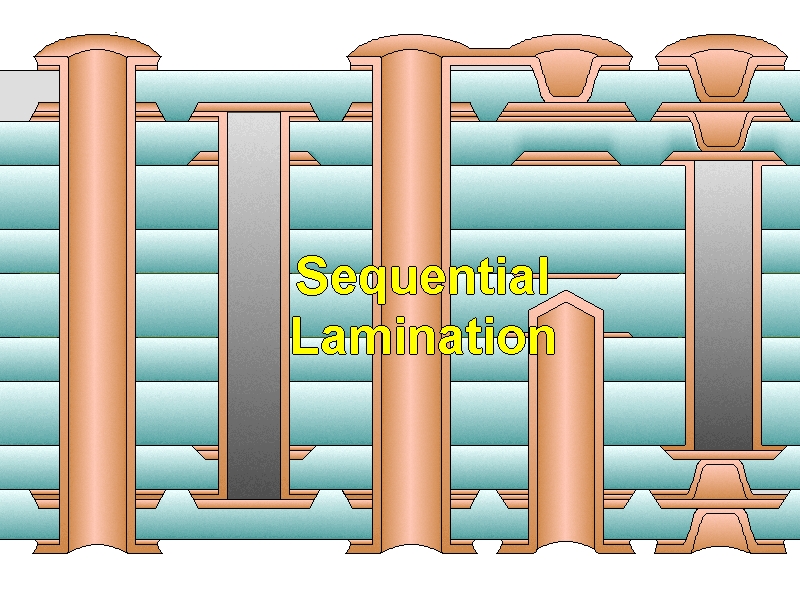

A generic Interconnect Stress Test (IST) Test Coupon containing Plated Through Hole and Sequentially Laminated Blind Via Technologies on a 5.5” (139.7mm) X 0.75” (19mm) coupon with a total thickness up to .125 inches and limited to a minimum of 6 layers. This coupon is designed on a small grid, .040”. The maximum hole/pad size is .015” (.38mm) and pad size is .026” (.66mm) for both power and sense circuits); decreasing these feature sizes will not affect the coupon functionality but increasing these feature sizes may result in shorts or excessively small clearances. Instructions on how to create a custom IST coupon for a specific product are included.
Note: The GS40001B design is limited to a minimum of 4 layer blind vias on either side of the substrate. If it is required to produce 2 layer blind vias, use the GB40001A generic design file.
Note: If this generic design is not suitable to construct a coupon consistent with the actual product, custom coupon design services are available.
GS50001B IST Coupon Information (With capacitance holes)
A generic Interconnect Stress Test (IST) Test Coupon containing Plated Through Hole and Sequentially Laminated Blind Via Technologies on a 5.5” (139.7mm) X 0.8” (20.3mm) coupon with a total thickness up to .125 inches and limited to a minimum of 6 layers. This coupon is designed on a small grid, .050”. The maximum hole/pad size is .015” (.38mm) and pad size is .026” (.66mm) for both power and sense circuits); decreasing these feature sizes will not affect the coupon functionality but increasing these feature sizes may result in shorts or excessively small clearances. Instructions on how to create a custom IST coupon for a specific product are included.
Note: The GS50001B design is limited to a minimum of 4 layer blind vias on either side of the substrate. If it is required to produce 2 layer blind vias, use the GB40001A generic design file.
Note: If this generic design is not suitable to construct a coupon consistent with the actual product, custom coupon design services are available.
